Description

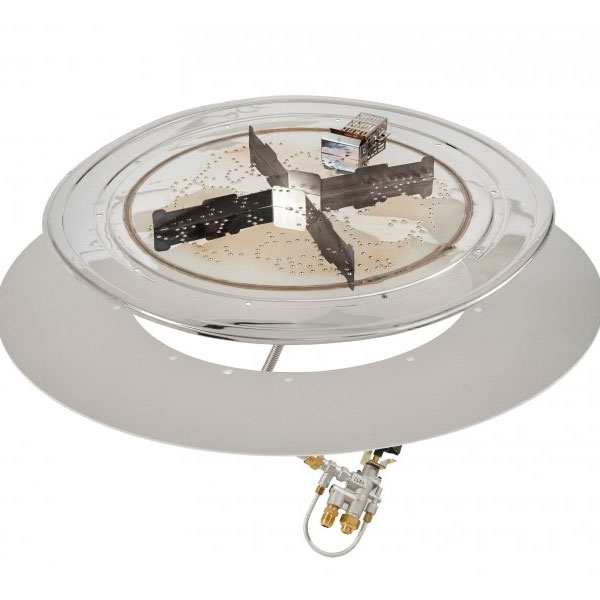

Round Stainless Steel Crystal Fire® Plus Burner Insert and Plate Kits can be used for custom-built fire pits or your own outdoor fire feature to complement your landscaping project. A no-flange edge and undermount installation are concealed by fire media to highlight the gorgeous dancing flames. All burners have a higher BTU capacity and upgraded burner construction for a brighter, taller, fuller, more yellow flame. With just the push of a button, a beautiful clean-burning fire appears atop a bed of tempered fire glass gems

Features:

Commercial-grade #304 stainless steel

Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason

“Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory

UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017

Installation should be completed by a certified gas technician

Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.

WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm. For more information, visit Proposition 65 Warnings.

Variable Control Safety Valve/Manual Ignition

Fully adjustable flame height

Comes setup for liquid propane but can be converted to natural gas using included conversion kit

Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, clear tempered fire glass gems

Direct Spark Ignition System/Automatic Ignition

Please specify LP or NG, not field-convertible

Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, clear tempered fire glass gems, and emergency stop button

Specifications:

Weight 15 lbs

Width 21.06″

Depth 21.06″

Height 4.82″

BTU's (LP) 55,000

1 year warranty on frame

1 year warranty on Crystal Fire

Items Included: Crystal fire burner, Glass fire gems, Hose & regulator, Gas valve, Metal flex valve,

Crystal Fire Plus Burners Info Sheet (for direct spark ignition)

Direct Spark Ignition Manual

Crystal Fire Plus Burner Manual

Crystal Fire Plus Burners Info Sheet (for manual ignition)

For additional assistance email [email protected] or call 877-230-3419
